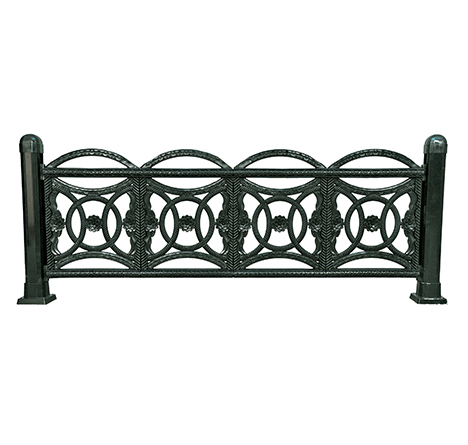

BPC-1461 MODEL FENCE SPECIFICATION
Product Name : Composite plastic fence with aluminum component
Usage Areas : Park – Garden retaining walls, Roadside, Medium refuge separation, Children playground around, Picnic areas, Seaside separation, etc. for
Production Process : Plastic fences are produced from injection-resistant plastic raw material. Due to the natural nature of the plastic, it is resistant to corrosion, discoloration, impacts, cold and heat. Aluminum profiles do not require painting for a long time since they are painted with static paint..
MODULES
1-MODUL 1B: Plastic Cap Module (Plastic)
2- MODULE 3: Plastic Middle Plug (Plastic)
3- MODULE 4: Plastic Head Plug (Plastic)
4- MODULE 5: Aluminum Casting Base (Casting)
5- MODULE 6: Stand Leg Profile (Aluminum)
6- MODULE 7: Sewing Channel Cover (Aluminum)
7- MODULE 7: Strut Channel Cover Short (Aluminum)
8- MODULE 8-9: Steel Mounting Stud (Steel)
9- MODULE 10: Plastic Stud Nut (Plastic)
10- MODULE 11: Sewing Head (Plastic)
11- MODUL 12: 5 * 8 Steel Screw (Steel)
12-MODUL 13: Super Plastic Imported Anchor (Plastic)
13- MODULE 14: Countersunk Head Steel Screw (Steel)
TECHNICAL SPECIFICATIONS

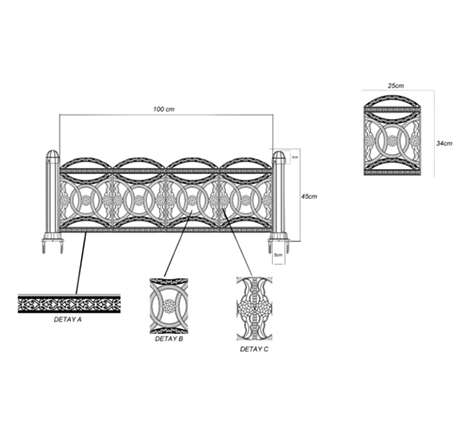

1- Plastic headed module; High density, polyethylene (PE) raw material, flame retardant and fading chemicals are placed in, 25 cm in the body, produced by injection method fences are passed through the steel stud channels, 1 meter fence or desired distances are obtained according to the project. Wall thickness 400 mm, width 250 mm, height 340 mm and 590 gr weight.
2- Steel Mounting Stud
It is used to bring the bodies together at certain distances and gives the middle closure strength. M 12 is made of worm tooth steel, galvanized, 1040 mm long and weighs 710gr.
3-Plastic Head Plug
The plastic modules are inserted between the stud nut and the module. It prevents plastic module flexing and gives aesthetic appearance. 20mm * 10mm ellipse shaped hole to cross the M12 screw in the middle, weight is 3 g.
4-Plastic Middle Plug
It prevents the flexing and joining of the plastic modules and the steel stud and provides strength. 20mm * 15mm ellipse shaped hole through the middle M12 screw, weight 5 gr.
5-Plastic Stud Nut
It is mounted on both ends of the steel studs, allowing the assembled fence to be mounted on the upright profile. 24 mm in diameter and 44 mm in width with M12 bolt holes in the middle.
6-Profile Profile
It is made of aluminum and painted in the oven with static powder paint. Its diameter is 49,8mm, its length is 400 mm and its weight is 270 gr / mt.
7-Zinc Alloy Casting Base
It is made of zinc alloy and painted with static powder paint in the oven. It has a base width of 80 * 80 mm, a height of 55 mm and a weight of 460 gr. There are 4 outer bolt holes and 4 inner bolt holes.
8-Sewing Head
It is produced from high density Polyethylene (PE) raw material by putting flame retardant and non-fading chemicals inside. It has a diameter of 54 mm and a height of 50 mm and a weight of 14 g.
9-Sewing Channel Cover
It serves to close the unused channels on the posts aesthetically. It is 23.3mm wide, 7.7mm wide and 330mm long. It weighs 42 g / m.
10- Super Plastic Imported Anchor
Imported dowel made of M8 * 65 plastic. Casting base is used for floor mounting.
11-5 * 8 Steel Screw
Galvanized screw made of M8 * 75 key head steel. Casting base is used for floor mounting.
12- Steel Screw with Countersunk Head
YSB type bolt. It is used to mount the plastic pillar head to the aluminum pillar profile.
INSTALLATION
1- Plastic modules of 25 cm are connected to the steel studs by inserting them through the channels of the modules and assembled to the channels in the profile with plastic nuts.
2- 360 degree direction can be provided to the fence by means of channels located on the four sides of the post. In this way, the fence can be turned in four different directions.
3- Plastic fences are fixed to the aluminum profile by means of galvanized steel and smart screws.
4- Aluminum struts are mounted to hard ground with aluminum casting base. 10 cm galvanized steel dowel is used for mounting the cast aluminum base on the ground.
5- The triple steel dowel screws used in the mounting of the aluminum casting base on the hard ground are closed with a plastic cover.
6- Plastic fences should be tiltable up to 45 °.
