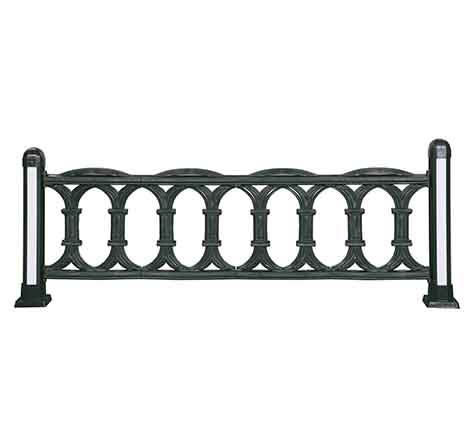

BPC-1453 MODEL FENCE SPECIFICATION
Area of Use
Park – Garden retaining walls, Roadside, Medium-median separation, Children’s playground around, Picnic areas, coastal separation, etc. for.
Product features
High density, polyethylene (PE) raw material, flame retardant and fading chemicals are placed in, 25 cm in the body, produced by injection method fences are passed through the steel stud channels, 1 meter fence or desired distances are obtained according to the project. Its wall thickness is 22.4 mm, height is 994.3 mm and width is 1000 mm. Weight; 5000 gr. Due to the natural nature of the plastic, it is resistant to corrosion, discoloration, impacts, cold and heat. Aluminum profiles do not require painting for a long time since they are painted with static paint. Plastic fence is mounted on the floor made of aluminum cast and made of stainless steel.

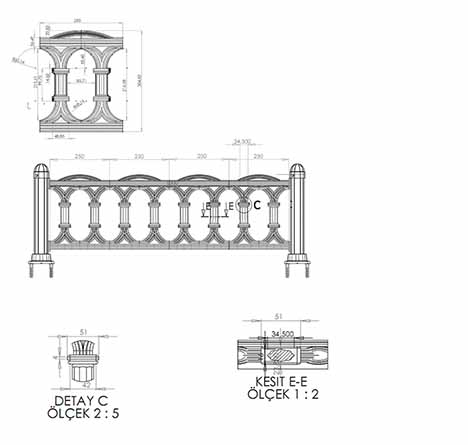

Technicial Specifications
1-MODULE 3A: Module with plastic cap; High density, polyethylene (PE) raw material, flame retardant and fading chemicals are placed in, 25 cm in the body, produced by injection method fences are passed through the steel stud channels, 1 meter fence or desired distances are obtained according to the project. Wall thickness 16,1mm, width 250mm, height 304mm and 500 gr weight.
2- MODULE 8-9: Steel Mounting Stub It is used to bring the bodies together at certain distances, and provides durability to the middle covering. M 12 is made of worm tooth steel, galvanized, 1040 mm long and weighs 710gr.
3- MODULE 4: Plastic Head Plug Plastic modules are placed between the stud nut and the module. It prevents plastic module flexing and gives aesthetic appearance. 20mm * 10mm ellipse shaped hole to cross the M12 screw in the middle, weight is 3 g.
4- MODULE 3 – Plastic Middle Plug Prevents the flexion between the plastic modules and the steel stud and provides strength. 20mm * 15mm ellipse shaped hole through the middle M12 screw, weight 5 gr.
5- MODULE 10 – Plastic Stud Nut It is mounted on both ends of the steel studs and allows the assembled fence to be mounted on the pillar foot profile. 24 mm in diameter and 44 mm in width with M12 bolt holes in the middle.
6- MODULE 6 – Profile Profile It is made of aluminum and painted with static powder paint in the oven. Its diameter is 49,8mm, its length is 350mm and its weight is 252 gr / mt.
7- MODULE 5 – Zamak Casting Base It is manufactured as Zamak casting and painted with static powder paint in the oven. It has a base width of 80 * 80 mm, a height of 55 mm and a weight of 460 gr. There are 4 outer bolt holes and 4 inner bolt holes.
8- MODULE 11- Sewing Head It is produced from high density, polyethylene (PE) raw material by putting flame retardant and non-fading chemicals inside. It has a diameter of 54 mm and a height of 50 mm and a weight of 14 g.
9- MODULE 7 – Sewing Channel Cover It is used to close the unused channels on the posts aesthetically. It is 23.3mm wide, 7.7mm wide and 330mm long. It weighs 42 g / m.
10-MODUL13 – Super Plastic Import Dowel Imported dowel made of M8 * 65 plastic. Casting base is used for floor mounting.
11- MODUL 12- 5 * 8 Steel Screw Galvanized screw made of M8 * 75 key head steel. Casting base is used for floor mounting. 12- MODULE 14 – Countersunk Steel Screw YSB type bolt. It is used to mount the plastic pillar head to the aluminum pillar profile.
