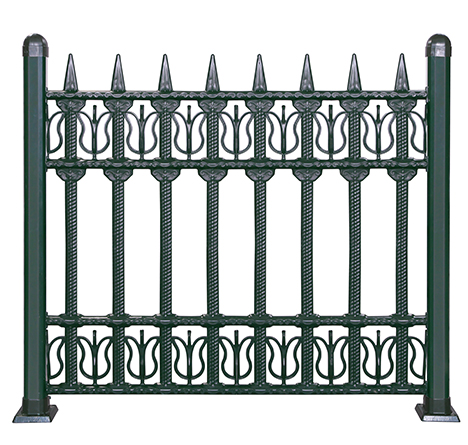

BPC-1517 MODEL FENCE SPECIFICATION
Product Name : Composite plastic fence with aluminum component
Usage Areas : Park – Garden retaining walls, Roadside, Medium refuge separation, Children playground around, Picnic areas, Seaside separation, etc. for
Production Process : Plastic fences are produced from injection-resistant plastic raw material. Due to the natural nature of the plastic, it is resistant to corrosion, discoloration, impacts, cold and heat. Aluminum profiles do not require painting for a long time since they are painted with static paint..
Product Parts, Technical Specifications of Product Parts;
1 – Module with plastic cap (Plastic)
2 – Pillar Foot Profile (Aluminum)
3 – Sewing head (Plastic)
4 – Steel Mounting Stud (Steel)
5 – Aluminum casting base (Casting)
6 – Plastic stud nut (Plastic)
7 – Plastic Head Stopper (Plastic)
8 – Plastic Middle Stopper (Plastic)
9 – 5 * 8 key head galvanized steel screw (Steel)
10 – Super Plastic imported dowel (Plastic)
11 – Stainless steel screw with countersunk head (Steel)
12 – Sewer channel cover (Aluminum)
13 – Large Pillar Foot Profile (Aluminum)
Technical Specifications of PVC Fence
1 – Module with plastic head; High density, polyethylene (PE) raw material, flame retardant and fading chemicals are placed in, 25 cm in the body, produced by injection method fences are passed through the steel stud channels, 1 meter fence or desired distances are obtained according to the project. Its wall thickness is 22.4 mm, height is 994.3 mm and width is 1000 mm. Weight; 5000 gr.
2 – Post profile; It is made of aluminum and painted in the oven with static powder paint. The fence and the roof parts of the camellia are mounted by mounting on the concrete floor with the base of the strut. It is 68.4mm in diameter, 1050mm in length and 1547g in weight.
3 – Sewing head; It is produced from high density Polyethylene (PE) raw material by putting flame retardant and non-fading chemicals inside. Provides aesthetic appearance It has a diameter of 62mm and a height of 60mm and a weight of 25 grams.
4 – Steel mounting stud; It is used to assemble 25 cm bodies at certain distances and gives strength to the middle closure. It has M 12 diameter, 1040 mm length and worm thread. Galvanized coating is made of steel and weighs 710 gr.
5 üminyum Aluminum casting base; It is manufactured from aluminum casting and painted in the oven with static powder paint. Thanks to the holes on the fence is fixed to the ground at certain intervals. It has a base width of 103.6 * 103.6 mm, a height of 55 mm and a weight of 335 grams with 4 outer bolt holes and 4 inner bolt holes.
6 – Plastic stud nut; Mounted on both ends of the steel studs, the assembled fence allows the mounting to the post profile.24 mm diameter and 44 mm width, centered with M12 bolt holes.
7 – Plastic head plug; The plastic modules are inserted between the stud nut and the module. It prevents plastic module flexing and gives aesthetic appearance. 20mm * 10mm ellipse shaped hole to cross the M12 screw in the middle, weight is 3 g.
8 – Plastic middle plug; It prevents the flexing and joining of the plastic modules and the steel stud and provides strength. 20mm * 15mm ellipse shaped hole through the middle M12 screw, weight 5 gr.
9 – 5 * 8 key head galvanized steel screw; Casting base is used for floor mounting.
10 übDowel; Casting base is used for floor mounting.
11 – Bolt; YSB type bolt It is used for mounting the plastic pillar head to the aluminum pillar profile.
12 – Sewing channel cover; It is made of aluminum and painted in the oven with static powder paint. It serves to close the unused channels on the posts aesthetically. It is 23.3 mm wide, 7.7 mm wide and 1000 mm long. It weighs 130gr / m.
Installation
- 1- Plastic modules of 25 cm are connected to the steel studs by inserting them through the channels of the modules and assembled to the channels in the profile with plastic nuts.
- 2- 360 degree direction can be provided to the fence by means of channels located on the four sides of the post. In this way, the fence can be turned in four different directions.
- 3- Plastic fences are fixed to the aluminum profile by means of galvanized steel and smart screws.
- 4- Aluminum struts are mounted to hard ground with aluminum casting base. 10 cm galvanized steel dowel is used for mounting the cast aluminum base on the ground.
- 5- The triple steel dowel screws used in the mounting of the aluminum casting base on the hard ground are closed with a plastic cover.
- 6- Plastic fences should be tiltable up to 45 °.
- 7- In the middle of aluminum struts, there is Municipality Logo and Advertising entrance panel.
- 8- The profile in ANNEX-2 is placed as 1 in 5 (five) meters..
